Alumil SMARTIA S77

SMARTIA S77 is an advanced system from ALUMIL that aligns with contemporary standards for quality and design. This system excels in energy efficiency, making it particularly well-suited for both hot and temperate climates. The SMARTIA S77 is distinguished by its outstanding sound insulation, user-friendly operation, and versatile functionality. Notably, it is the only profile in the ALUMIL range that meets the rigorous "passive house" thermal insulation standard, ensuring superior performance in energy conservation and indoor comfort.

Schemes

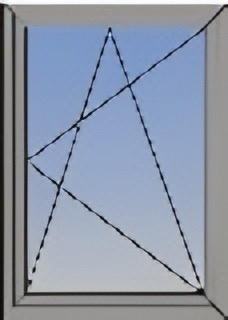

One sash tilt & turn

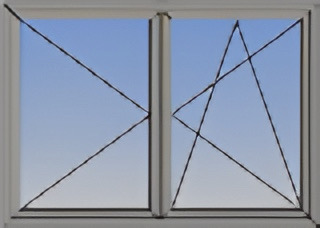

Double tilt & turn window

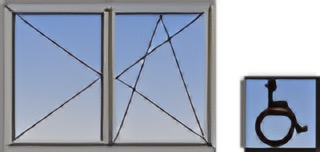

Double tilt & turn window with low threshold

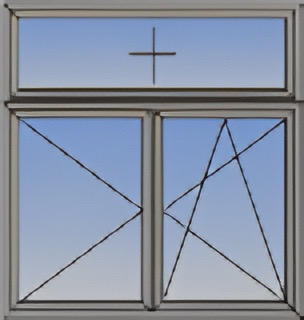

Double tilt & turn with light

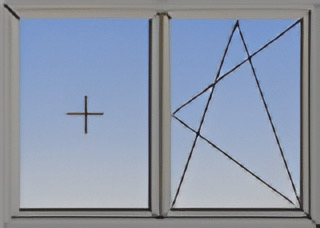

Double tilt & turn window with fixed light

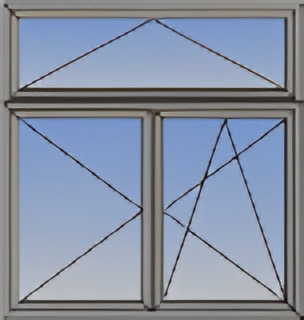

Double tilt & turn with fanlight

Horizontal pivot window

Vertical pivot window

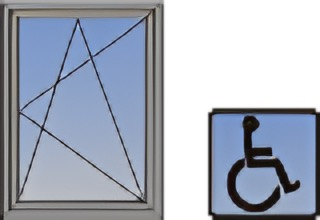

Single tilt & turn casement with P.W.D low threshold

FRAME DEPTH
77 mm

MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
93 mm

MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
122 mm

GLAZING TYPE
Double - Triple

MAXIMUM GLAZING THICKNESS
from 24 up to 72 mm

MECHANISM
Euro-groove, Euro-nut

SEALING METHOD
Perimetrical at 3 levels with EPDM & foam EPDM gaskets

MINIMUM THRESHOLD HEIGHT
13 mm

TYPE OF THERMAL INSULATION
Polyamides 40 mm width, ALUMIL Energy bar, Insulation foam

Possible Doors

Hinged Doors

Hinged doors are classic and the most popular, providing comfortable and practical use. These hinged doors can be installed to open either inward, outward, or tilt and turn. PROFAL hinged casement and tilt and turn doors are an excellent choice for design, safety, and durability.

Hinged Casement Doors Our hinged casement doors are designed with robust aluminum frames. These doors are attached with high-quality door hinges at the side and can open inwards or outwards, providing a traditional yet elegant solution for entryways and room dividers. Using a premium door hinge ensures smooth operation and longevity.

Tilt and Turn Doors Tilt and turn doors made from aluminum frames offer a sophisticated option for modern homes. These doors feature a dual-function mechanism: they tilt inwards at the top for ventilation and turn inwards like a traditional door. Controlled by a single handle, this door hinges system provides flexibility, superior insulation, and security.
